SKU: 7523437
Usually ready in 24 hours. (Note: Order must be picked up by the person who placed the order. Photo ID required.)

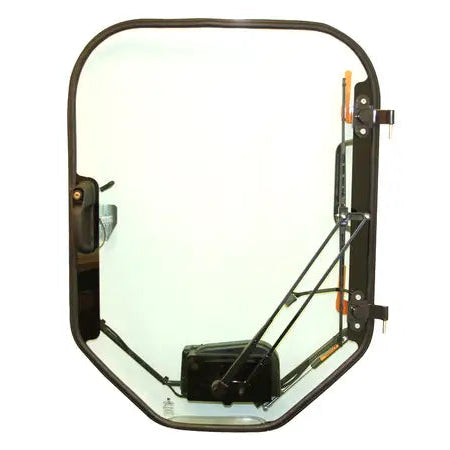

Order a door assembly for a lower price than individual parts, shortening the installation time by 95%. Fully Assembled Door for Skid Steer Loaders, 7523437 comes fully assembled and simply needs to be latched in place. You will also need to order Door Mounting Kit for Loaders, 7501489
Glass does not come equipped for bottom mounted washer nozzle.
The fully assembled door comes with a wiper arm, but it is not equipped with the tubing and nozzle for the window washer connection. If you want the window washer connection, order Window Wiper Arm, 7251263 or the following kit:
Window Washer Kit for Loaders, 7505920
Replacement door arrives in one piece and includes the following parts pre-installed.
7001709 Front Wiper Switch
7142371 Gas Door Spring
7109662 Door Latch Handle
7109661 Door Latch w/ Sensor
7120401 Glass Door
7120402 Door Cab Frame
7193725 Door Cab Hinge
7234174 Wiper Motor
7251264 Wiper Blade
7277284 Wiper Arm Assembly
Model Compatibility
Compact Track Loaders T450, T550, T590, T595, T630, T650, T740, T750, T770, T870
Skid-Steer Loaders S740, S750, S770, S850, A770, S450, S510, S530, S550, S570, S590, S595, S630, S650
S460, S560, T460, T530, T560
