7/8" UNF/ORB thread

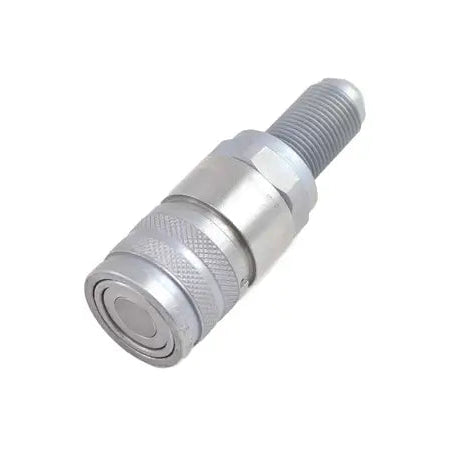

Bobcat flat faced couplers are engineered to have no leaks during connection and disconnection, as well as long-lasting polymer seals to sustain dirty and dusty conditions that are typical in agriculture and construction.

Mating ends of the newer couplers are compatible with older style couplers, allowing old and new couplers to connect with each other. However, an FFI coupler will not function in an FFH block and vice versa. The best way to identify which version block/coupler is installed is by looking for the manufacturers stamp: previous blocks and couplers have an FFI or FI, newer have an FFH or FH. The stamp is visible on the outside sleeve of male couplers. The stamp is also on the side of the block. Blocks that are connected inside the lift arm must be removed to see the stamp.

No fluid spillage or air inclusion keeping equipment safe and clean

Avoid costly fluid spills

Internal components designed to maximize fluid flow with minimal change in pressure

Push to connect

Working pressure of 35 MPa

High grade carbon steel with zinc-nickel plating

ISO 16028 interchange

1/4 inch body size

7/8 inch UNF thread

14 UNF MALE ORB

Manufactures stamp: FFH08-14/58S-FS

Model Compatibility
Compact Excavators    E30, E50Z, E55Z, E25, E26, E27, E27z, E34, E35z, E37, E60
Compact Track Loaders    T110
Skid-Steer Loaders    763, S100, 553, 751, 753
